Product Code:
CP-236
Weight:
70.00g
Dimensions:
100.00mm x 12.00mm x 80.00mm
Custom Field 1 (UPC):
Protected Link

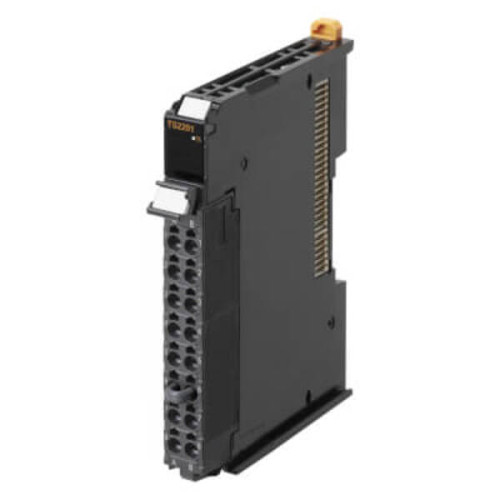

CP-236 I/O Module PT100
2 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2201
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 2 |
| Temperature input type | Pt100, Pt1000 |
| Linear analog input type | None |
| Resolution of the analog inputs | 14 Bit |
| Input circuit type | Single-ended |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 250 ms/unit |
| Signal processing | Free running |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 80 mm |
| Weight | 70 g |
810 Ref. TS 2201/SID800
812 Ref. TS 2201/SID800
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Stock Type | |
| Standard Stock | |
