Spare Part Number: CF-025
Net Weight: 380.00g
Net Dimensions: 424.00mm x 30.00mm x 21.00mm
Technical Datasheet: Protected Link
Certification: Protected Link - CE Declaration

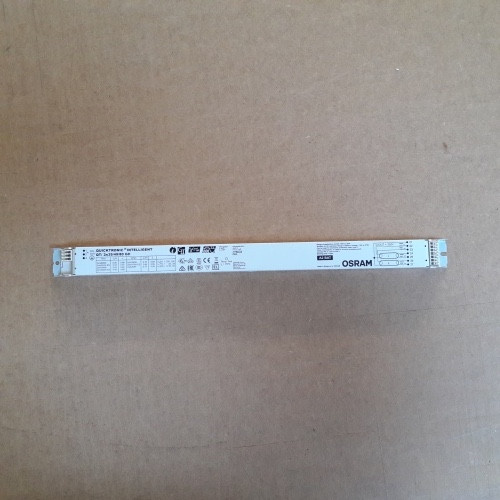

CF-025      Electronic Ballast OSRAM

Also replacement for CF-020



Electronic ballasts control the starting voltage and the operating currents of lighting devices through the principle of electrical gas discharge. They converts power frequency to a very high frequency to initialize the gas discharge process in Fluorescent Lamps – by controlling the voltage across the lamp and current through the lamp.



--------------

2x35/49/80





Electrical data

Input voltage AC 198…264 V
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Input voltage DC 176…276 V
Maximum output power 2 x 80 W
Efficiency in full-load 96 %
1) Operating frequency 45…70 kHz Max.
ECG no. on circuit breaker 10 A (B) 5 2)
Max. ECG no. on circuit breaker 16 A (B) 9 2)
Inrush current 39 A



1) at 230 V, 50 Hz

2) Type B

Equipment Model Exposure UVA Light-Finisher UVA Light-Finisher UVC
EVO 3 ELF Ref RM1-23 Ref RC1-18 Ref RP1-17
EVO 3 EDFL Ref RM1-23 Ref RC1-18 Ref RP1-17

EVO 4 E Ref BA1-42 n-a n-a
EVO 4 LF n-a Ref BA1-24 Ref BC1-23
EVO 4 ELF Ref BA1-42 Ref BA1-24 Ref BC1-23
EVO 4 EDLF Ref BA1-42 Ref BA1-24 Ref BC1-23
EVO 4 DFL n-a Ref BA1-24 Ref BC1-23

EVO 5 LF n-a Ref BA1-30 Ref BC1-29
EVO 5 DLF n-a Ref BA1-30 Ref BC1-29









Suitable for the following equipment models:
EVO 3 EDLF
EVO 3 ELF
EVO 4 DLF
EVO 4 E
EVO 4 EDLF
EVO 4 ELF
EVO 4 LF
EVO 5 DLF
EVO 5 E
EVO 5 ELF
EVO 5 LF
Spare Part Type
Electrical Component
Spare Part Group
Others
Stock Type
Standard Stock
