It features a batch washout unit (Plate Processor) and an internal integrated punch.
It is designed to process solvent-washable, polyester-backed, analogue and digital plates up to a size of 132 x 203 cm (52x80 inch) and thickness up to 7 mm (0.276 inches).
It is equipped with a pre-wash section for digital plates with a separate tank to recover the black layer. The batch processor comes in the extended size, with a very high washout speed: the plate enters the processor quickly, is fully washed at once, and exits rapidly.
The standard version is equipped with a stress-accumulation early-warning-system and may be equipped with optional tools that enable remote-monitoring and remote-diagnostics.
Plate Processor 132x203 cm (52x80")
The Evo 5 BP is a flexo batch processing unit in the size 132 x 203 cm (52x80 inch). As all Vianord processors, it is equipped with a pre-wash section for digital plates with a separate tank for the black layer. The batch processor comes in the extended size, with a very high washout speed: the plate enters the processor quickly, is fully washed at once, and exits rapidly.
This unit is compatible with the Easy to Plate™ system.
Plate Entrance
- The Plate holder at the bottom of the machine allows the user to store rolled plates to avoid any damage and have them ready to use.
- The Pin bar storage section can carry up to 8 pin bars.
- The integrated automatic rollaway punch automatically opens when the front lid is opened. Then it is enough to position the plate in the device to have it pierced with precision. The number of times the punch pierces the plate is programmable according to the user's preferences.
Washout
- Digital washout with separate pre-wash section to prevent contamination
of the main washout solvent with black layer- 2 pre-wash brushes (oscillating and rotating)
- 10 washout brushes (oscillating and rotating)
- 1 top cleaning brush (oscillating and rotating)
- 1 wiping brush (oscillating and rotating)
- 2 back cleaning brushes (rotating)
- New volumetric pump and sensitive pressure sensor allow a higher precision solid content analyser
- Automatic solvent replenishment system
- Fresh solvent consumption control over the machine life cycle and programmable over a time frame
- Fresh solvent flow regulation option on the touch screen
- Constant solvent temperature thanks to water circulation serpentine
Washout
- the new "3D Brush Motion" system with servo drive motors enables a soft mechanical start which results in less vibrations and a much more quieter machine.
- It also provides a constant and repeatable washout speed; in fact, the new system, adjustable from the display, automatically synchronizes the brushes rotation and oscillation speed to the plate transfer speed; so that bristles hit the plate, thin or thick, always at the same speed
Additional Features

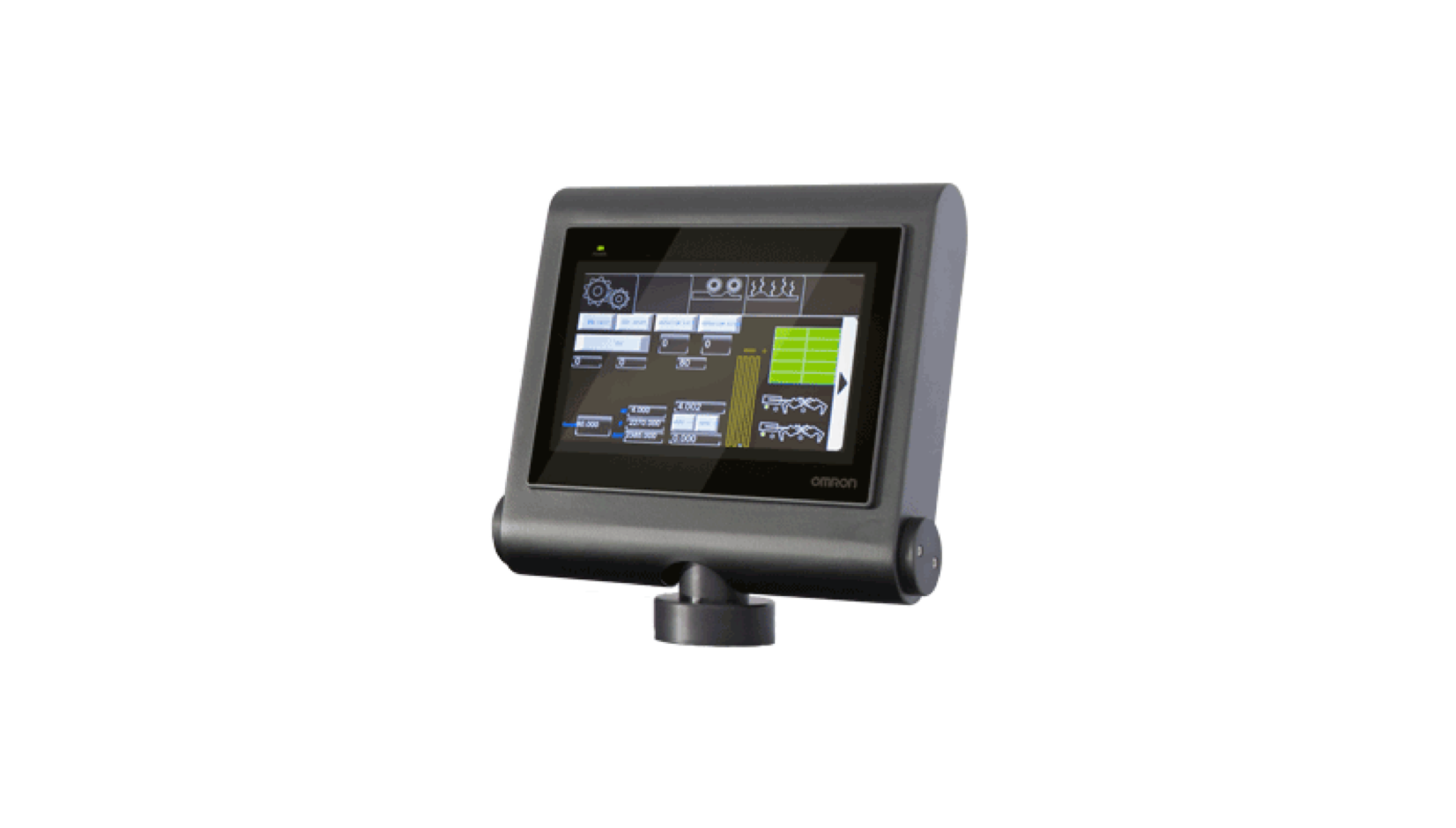

- 30 x x 30 rotating and tilting touch screen display
- Programmable automatic solvent warmup
- Automatic standby after the last plate processed
- Remote access (optional)
- Active component visualisation during the process
- Manual function to run the components separately
- Memorisation of the plate process parameters (up to 24 channels)

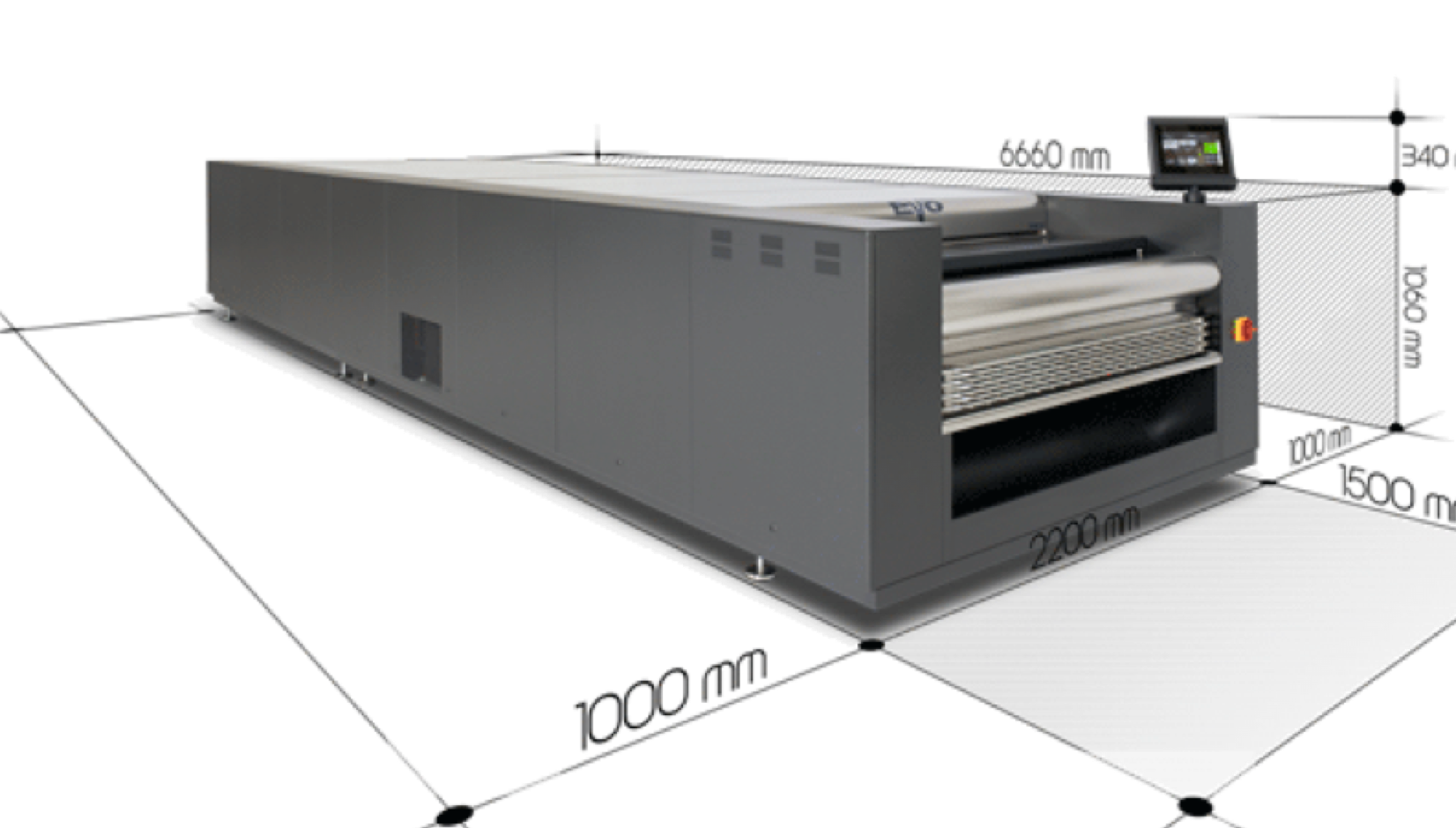

Encumbrance
CE Certification
The equipment is designed and manufactured according to the EEC safety and health standards, as specified in the Type Examination Certificate No. MA19-0042548-01 (310) issued by IMQ spa – Via Quintiliano 43 – 20138 Milan ITALY, and on the basis of the verifications carried out according to the essential requirements of the Directive 2006/42/EC, the system respects and is in compliance with all the applicable points.
General Features
This PLC controlled, batch processor is specifically designed for high throughput of high quality digital and conventional photopolymer solvent-washable plates.
It is particularly efficient with thick plates (e.g. for corrugated applications).
Modular
One of the most important feature of the Easy to Plate™ is the modularity concept, in other words, each unit is an independent piece of equipment buyable separately with the possibility of being upgraded and attached to one other to compose an all-in-one automatic unit. This gives you two choices: buy the whole automatic line at once, or amortize the investment and buy the different units over a longer time frame.
Solvent
It is designed to work in a standard “drum-to-drum” configuration where fresh solvent is supplied to the washout unit from a drum and the saturated dirty solvent is pumped from the unit to a recovery drum. It has been tested with conventional alternative solvents, with flashpoint above 62°C (144°F). The system's installation kit includes two Ø 16 mm - 5 mt solvent hoses with fittings, one level switch for the fresh solvent drum and another for the used solvent drum. Please note that if you intend to use this system with permanently installed tanks, special level switches may be required.
Processor
Production Data Recording
Stress-Accumulation Early-Warning
Remote Diagnostics
System Dimensions (net)
Washout: 407 x 220 x 115 cm - (160.2 x 86.6 x 45.3”)
Exit Table: 259 x 220 x 115 cm - (102 x 86.6 x 45.3”)
System Weight (net)
Washout: 1860 Kg - 4100 Ib)
Exit Table: 700 Kg - (1543 Ib)
Packing Dimensions
Dimensions
Washout: 432 x 226 x 135cm - (170.1x 89 x 53.1”)
Exit Table: 290 x 226 x 135 cm - (114.2 x 90 x 53.1”)
Industrial Wooden Crates are favoured if the system must withstand multiple transhipments during transport and is mandatory when shipped outside the continent.
Dimensions
Washout: 426 x 227 x 167cm - (167.7 x 89.4 x 65.7”)
Exit Table: 296 x 227 x 167 cm - (116.6 x 89.4 x 65.7”)
The dimensions mentioned above are for reference only; packaging dimensions may vary depending on the packing company hired for the job.
Packing Weight
Washout: 2210Kg - (4872Ib)
Exit Table: 850Kg - (1873Ib)
Industrial Wooden Crates
Washout: 2600Kg - (5732Ib)
Exit Table: 1140Kg - (2513Ib)
The weights mentioned above are for reference only; packaging weight may vary depending on the packing company hired for the job.
Mains Electricity
Power Supply (field configurable)
360 / 440 Volt – 50 / 60 Hz - 3Ph / N / PE - 207 / 243 Volt – 50 / 60 Hz - 3Ph / PE
Current (nominal load)
15 A (360/440 Volt configuration) - 26 A (207/243 Volt configuration)
Power Rating (nominal)
9 Kw
Connecting Wires
5 x 4 mm2 (360/440 Volt configuration) - 4 x 6 mm2 (207/243 Volt configuration)
Grounding
Compressed Air Supply
To perform to the best of its possibilities, the system requires a continuous and stable supply of compressed air at a pressure of at least 7 bar (101.5 psi) and not more than 10 bar (145 psi), with pressure dew point 3°C and max. residual intake oil content of < 0.01 mg/m3. Consider also an average consumption of 70 l/hr. The system installation kit includes a 5-meter - Ø 6mm air connecting pipe for push-in fitting.
Exhaust
The unit is equipped with a well-designed exhaust system that collect and conveys vapours and fumes from the different sections the machine and discharge them as quickly and silently as possible. The blower in the systems has sufficient power to vent the entire equipment when the tube supplied is connected directly to a vent hoods in the external wall or on the roof.
Duct connection: Ø 140 mm (5.5”) Airflow: 600-650 m3/h
Working Environment
The system should be installed in a clean, constant-temperature and constant-humidity pre-printing environment with a temperature between 18 and 26°C (64.4 and 78.8°F) and a non-condensing relative humidity in the range of 40 to 60%.
To maintain such environmental standards an efficient heating/cooling and ventilating system may be required.
System Colour
Vianord offers all equipment in standard powder coating Vianord Black.
In addition, Vianord offers numerous ways you can personalize your system. In fact, Vianord offers the best customization options in the industry! This allows you to showcase your brand and company’s spirit in ways other companies can’t offer. You can choose your personal colour and have your logo, company name, or slogan pop.
