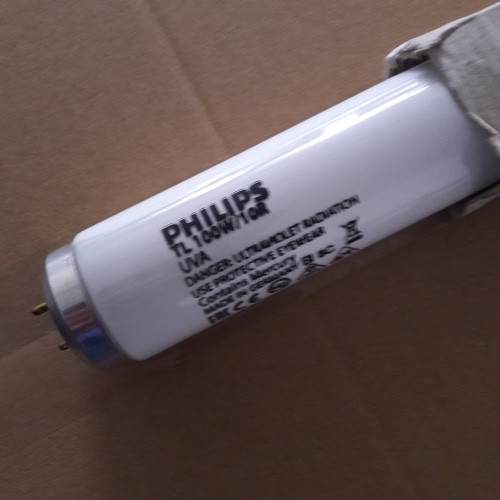

CF-003   BOX of 25 PHILIPS Lamp UVA TL 100W 10R

Also replacement for CF-013

Net Weight (Piece)     391.600 g

Dimensions

A (max) 1763.8 mm

B (max) 1770.9 mm

B (min) 1768.5 mm

C (max) 1778 mm

D (max) 40.5 mm

Cap-Base         G13  [ Medium Bi-Pin Fluorescent]

Main Application        Reprography (R)

Life to 50% Failures (Nom)     2000 h

Useful Life (Nom)        1000 h

---

Color Code      10-R

Color Designation       Ultra Violet A

Chromaticity Coordinate X (Nom)      222

Chromaticity Coordinate Y (Nom)      210

UV Depreciation at 500 h       10 %

UV Depreciation at 1000 h     20 %

UV Depreciation at 2000 h     30 %

---

Power (Nom)  100 W

Lamp Current (Nom)   0.97 A

Voltage (Nom) 122 V

Approval and Application

Mercury (Hg) Content (Nom) 13.0 mg

---

UV-B/UV-A (IEC)         0.1 %

UV-A Radiation 100Hr (IEC)    26 W

EVO 5 E - Exposure 52 lamps Ref. E1-52
