Product Code:
CR-009
Weight:
11.90g
Dimensions:

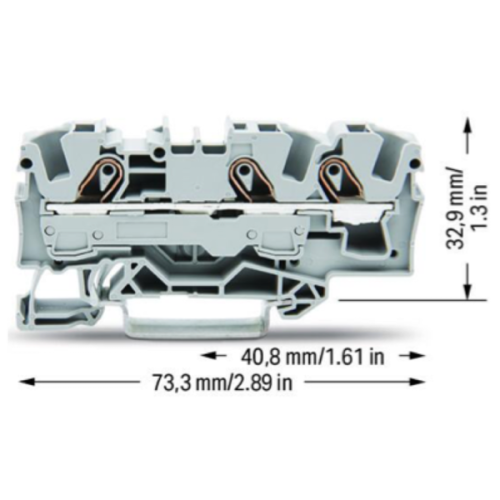

7.50mm x 73.30mm x 32.90mm

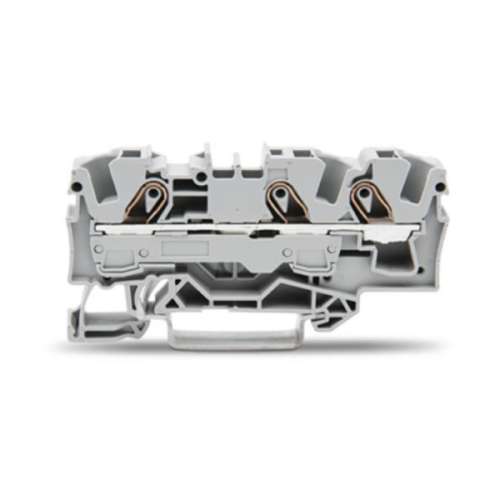

CR-009 3-conductor through terminal block
6 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray
WAG20061301
Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
| Nominal voltage (III/3) | 800V |
| Rated impulse voltage (III/3) | 8kV |
| Rated current | 41A |
| Rated current 2 | 57A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 50A |
| Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 50A |
Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
| Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 50A |
| Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 50A |
830 Ref TB3, TB4
812 Ref TB1
812 Ref TB1
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Spare Part Group | |
| Others | |
| Stock Type | |
| Made to Order | |
