Product Code:
CG-045
Weight:
87.00g
Dimensions:
82.50mm x 31.00mm x 30.00mm
Custom Field 1 (UPC):
Protected Link

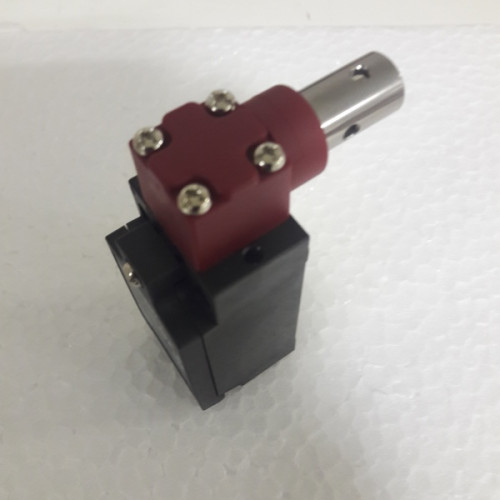

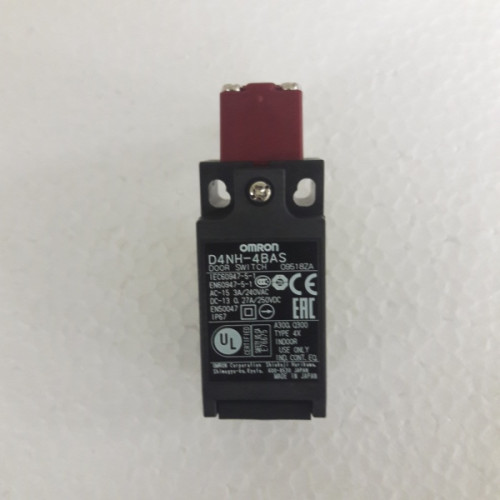

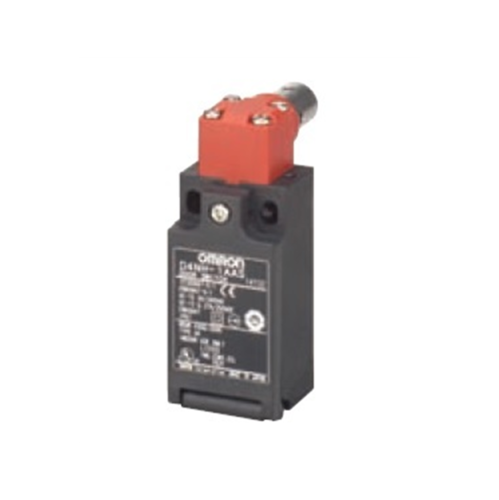

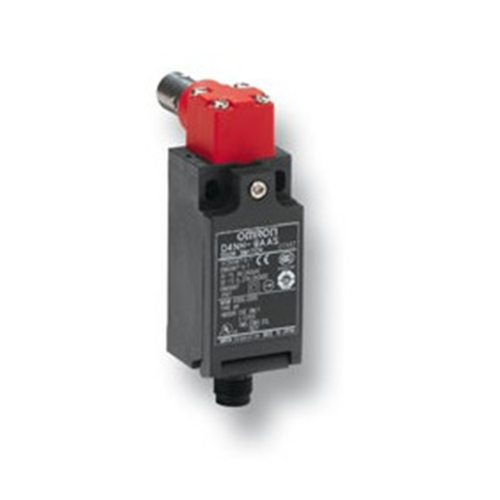

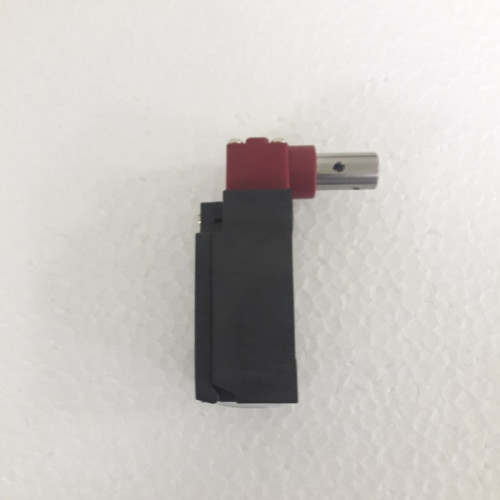

CG-045 Door safety switch
Miniature safety-door hinge switch designed for space saving guarding in machines and safety equipment.
D4NH-4BAS
General description
| Door switch type | Hinge-operated |
| Material housing | Plastic |
| Material head | Plastic |
| Actuator type | Shaft |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Connection method | Terminal block |
| Degree of protection (IP) | IP67 |
| Conduit size | M20 |
| Number of conduits | 1 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length | 82.5 mm |
| Height of sensor | 30 mm |
| Width sensor | 31 mm |
| EASY TO PLATE EVO 4 IPI | Ref. S18 |
| EASY TO PLATE EVO 5 IPI | Ref. S18 |
| EASY TO PLATE EVO 5 BPI | Ref. S18 |
| Suitable for the following equipment models: | |
|---|---|
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPI | |
| Spare Part Type | |
| Electrical Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
