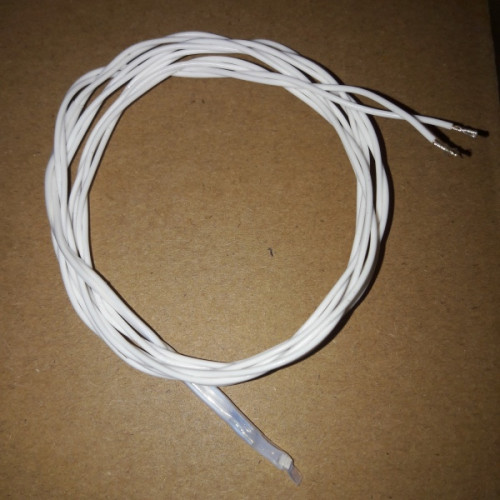

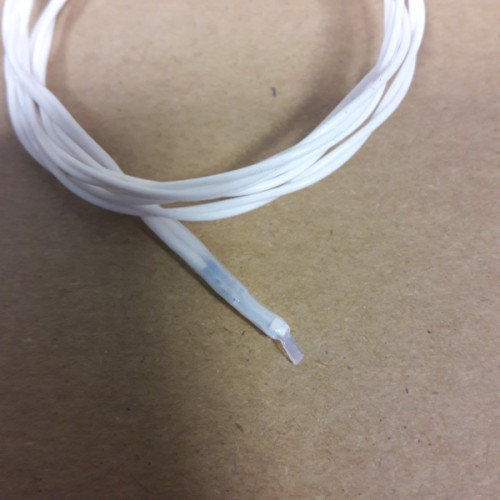

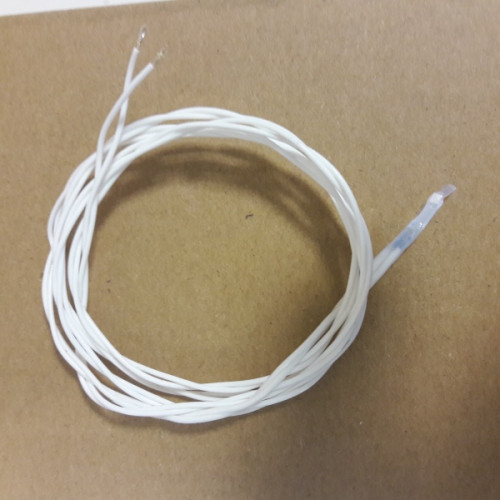

CG-001 Temperature sensor PT100
Platinum resistance thermometer (PRTs) provide excellent accuracy over a wide temperature range (from –200 to +850 °C). Unlike thermocouples, it is not necessary to use special cables to connect to the sensor. The principle of operation is to measure the resistance of a platinum element. PT100 has a resistance of 100 ohms at 0 °C and 138.4 ohms at 100 °C. The relationship between temperature and resistance is approximately linear over a small temperature range. For precision measurement, it is necessary to linearise the resistance to give an accurate temperature.
1SN0229 - (PRO033437)
EVO 2 A Ref.
CLASSIC 3P Ref. C1 - C2
EVO 3 ELF Ref. From C1 to C2
EVO 3 EDLF Ref. From C1 to C4
EVO 5 BP Ref. C2
Easy to Plate EVO 5 BP D Ref. C2
Easy to Plate EVO 5 BP I Ref. C2
610 Ref. C1
611 Ref. C1
620 Ref. C1
621 Ref. C1
830 Ref. C1
810 Ref C1
812 Ref C1
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| CLASSIC 4 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPD | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 2 A | |
| EVO 3 A | |
| EVO 3 EDLF | |
| EVO 3 ELF | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 BP | |
| EVO 5 IP | |
| Spare Part Type | |
| Electrical Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
